BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL CISCO WARRANTY!!!

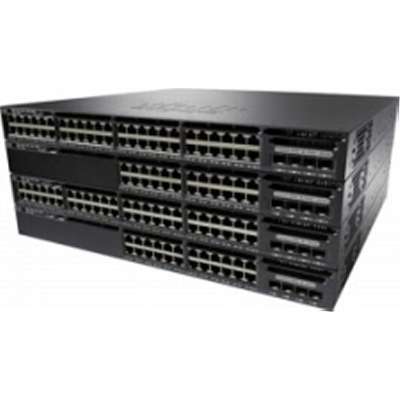

Cisco Catalyst WS-C3650-24PWS-S is the next generation enterprise-level standalone with stackable option switch with IP Base image. WS-C3650-24PWS-S has 24 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides fully convergence between wired and wireless capacity on a single platform with 5 access point licenses. Cisco StackWise technology creates high scalability and resilient unified system with up to stack 9 switches in order to simplify network management. IP Base feature set enables wireless controller functionality for supporting up to 25 wireless APs and 1000 wireless connections (include 5 AP licenses). For stacking purpose, stack modules are required; in addition, IP base feature set can only stack with other 3650 series in IP Base feature set, in order to stack with LAN base feature set, IP base need to configure in LAN base feature set (Stack module purchase separately). Flexible Netflow monitors the network traffic flows to help identify the threat of network. Cisco energy-efficient provides intelligence power management system, enables power setting on an individual port to reduce power consumption.
Features : Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), EIGRP Stub Routing, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Flexible NetFlow (FNF)
Cisco Part Number : WS-C3650-24PWS-S
Specifications
- Manufacturer :CISCO DS HARDWARE DIRECT
- Brand :Cisco
- Product Line :Cisco Catalyst
- Model :3650-24PWS-S
- Packaged Quantity :1
- RAM
- Installed Size :4 GB, 4 GB, 4 GB, 4 GB
- Flash Memory
- Installed Size :2 GB, 2 GB, 2 GB, 2 GB
- Performance
- Performance :Forwarding performance: 65.47 Mpps, Switching capacity: 88 Gbps
- Capacity
- Capacity :Switched virtual interfaces (SVIs): 1000, NetFlow entries: 24000, IPv4 routes: 24000, Virtual interfaces (VLANs): 1000, Manageable access points: 5
- Networking
- Type :Switch
- Subcategory :Network hubs and switches
- Subtype :Gigabit Ethernet
- Form Factor :Rack-mountable, Desktop
- Stackable :Stackable
- Ports Qty :24
- Advanced Switching :Layer 3
- Routing Protocol :OSPF, Static IP routing, RIPng, RIP-2, RIP-1
- MAC Address Table Size :32000 entries
- Jumbo Frame Support :9198 bytes
- Manageable :Yes
- Remote Management Protocol :CLI, Telnet, RMON 2, SSH, RMON 3, SNMP 1, SNMP 3, RMON 1, SNMP 2c, RMON 9
- Power Over Ethernet (PoE) :PoE+
- PoE Budget :390 watt
- Status Indicators :PoE, Port duplex mode, Port transmission speed, System, Status, Active
- Ports
- Qty :24
- Type :10/100/1000 (PoE+)
- Ports (2nd)
- Qty :4
- Type :SFP+
- Expansion Slots
- Expansion Slots :1 (total) / 1 (free) x Stacking Module slot
- Interface Provided
- Software
- Type :Cisco IOS IP Base
- Power Device
- Type :Internal power supply
- Hot-Plug :Hot-plug
- Power Redundancy :Optional
- Power Redundancy Scheme :1+1 (with optional power supply)
- Installed Qty :1
- Max Supported Qty :2
- Power Provided :640 watt
- Nominal Voltage :AC 120/230 V
- Frequency Required :50/60 hertz
- Miscellaneous
- Color Category :Black
- Rack Mounting Kit :Included
- Height (Rack Units) :1
- Authentication Method :RADIUS, TACACS+, Secure Shell (SSH)
- MTBF :528,280 Hours
- Dimensions & Weight
- Width :17.5 inch
- Depth :17.6 inch
- Height :1.7 inch
- Weight :16.01 lbs
