Cisco · PoE · Gigabit Ethernet · Switches · Managed · 24 ethernet ports · Layer 3 · VLAN
BRAND NEW WITH THE FULL CISCO WARRANTY!!!

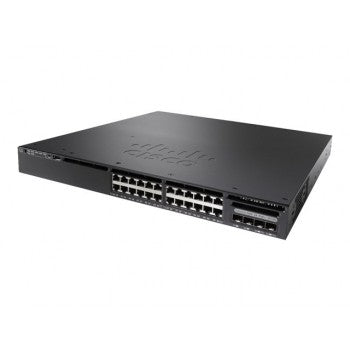

Cisco Catalyst WS-C3650-24TS-E is the next generation of enterprise-level standalone switch with stacking option for access-layer and distribution-layer design. WS-C3650-24TS-E integrates 24 Gigabit Ethernet ports and 4 fixed 1G SFP uplink ports in IP service feature set which enables advanced layer 3 routing performance with superior QoS capabilities. Cisco Catalyst 3650 series switches process both wired and wireless services on a single platform. Cisco StackWise-160 creates high scalability and resilient unified system with up to stack 9 switches to simplify the network management, and it also enables stateful switchover on stacking to provide redundancy. IP service feature set enables wireless controller functionality with supporting up to 25 wireless APs and 1000 wireless connections (AP licenses purchase separately). For stacking purpose, stack modules are required; in addition, IP service feature set can only stack with other 3650 series in IP service feature set, in order to stack with LAN/IP base feature set, IP service feature set need to configure in LAN/IP base feature set (Stack module purchase separately). Flexible Netflow monitors the network traffic flows to identify the threat of network.
Specifications
- Manufacturer :Cisco Systems
- Brand :Cisco
- Product Line :Cisco Catalyst
- Model :3650-24TS-E
- Packaged Quantity :1
- RAM
- Installed Size :4 GB, 4 GB, 4 GB, 4 GB
- Flash Memory
- Installed Size :2 GB, 2 GB, 2 GB, 2 GB
- Performance
- Performance :Switching capacity: 88 Gbps, Forwarding performance: 65.47 Mpps
- Capacity
- Capacity :Switched virtual interfaces (SVIs): 1000, NetFlow entries: 24000, Virtual interfaces (VLANs): 4000, IPv4 routes: 24000
- Networking
- Type :Switch
- Subcategory :Network hubs and switches
- Subtype :Gigabit Ethernet
- Form Factor :Rack-mountable, Desktop
- Stackable :Stackable
- Ports Qty :24
- Advanced Switching :Layer 3
- Routing Protocol :OSPFv3, PIM-SM, Policy-based routing (PBR), EIGRP for IPv6, IS-IS, Static IP routing, RIP-2, BGP-4, PIM-DM, RIP-1, PIM-SSM, RIPng
- MAC Address Table Size :32000 entries
- Jumbo Frame Support :9198 bytes
- Manageable :Yes
- Remote Management Protocol :RMON 2, SSH, RMON 1, SNMP 1, RMON 3, RMON 9, Telnet, SNMP 2c, SNMP 3, CLI
- Status Indicators :Status, System, Active, Port duplex mode, Port transmission speed
- Ports
- Qty :24
- Type :10/100/1000
- Ports (2nd)
- Qty :4
- Type :SFP (mini-GBIC)
- Expansion Slots
- Expansion Slots :1 (total) / 1 (free) x Stacking Module slot
- Interface Provided
- Software
- Type :Cisco IOS IP Services
- Power Device
- Type :Internal power supply
- Hot-Plug :Hot-plug
- Power Redundancy :Optional
- Power Redundancy Scheme :1+1 (with optional power supply)
- Installed Qty :1
- Max Supported Qty :2
- Power Provided :250 watt
- Nominal Voltage :AC 120/230 V
- Frequency Required :50/60 hertz
- Miscellaneous
- Color Category :Black
- Rack Mounting Kit :Included
- Height (Rack Units) :1
- Authentication Method :RADIUS, TACACS+, Secure Shell (SSH)
- MTBF :661,800 Hours
- Dimensions & Weight
- Width :17.5 inch
- Depth :17.6 inch
- Height :1.7 inch
- Weight :15.15 lbs
UPC : 00882658593468
