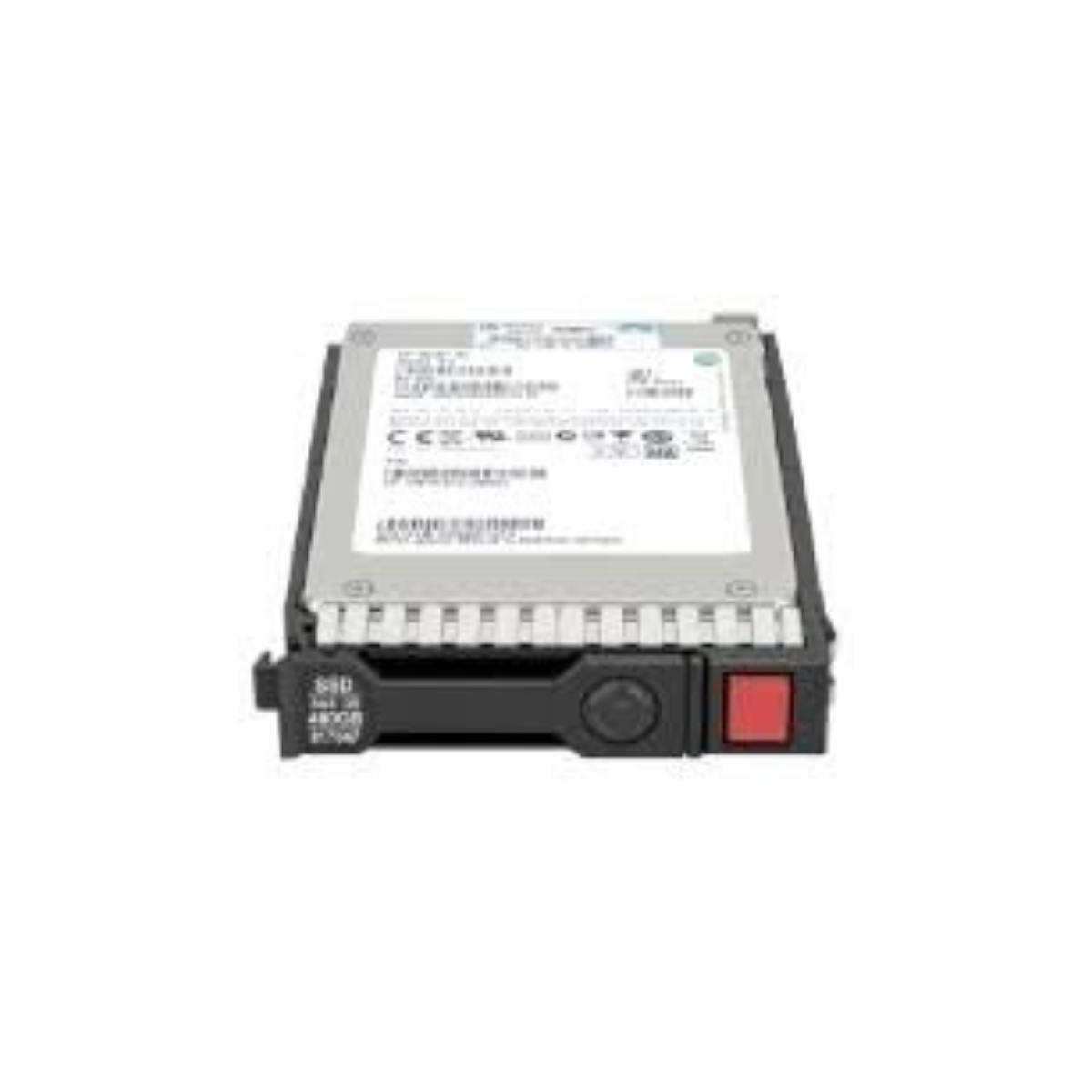

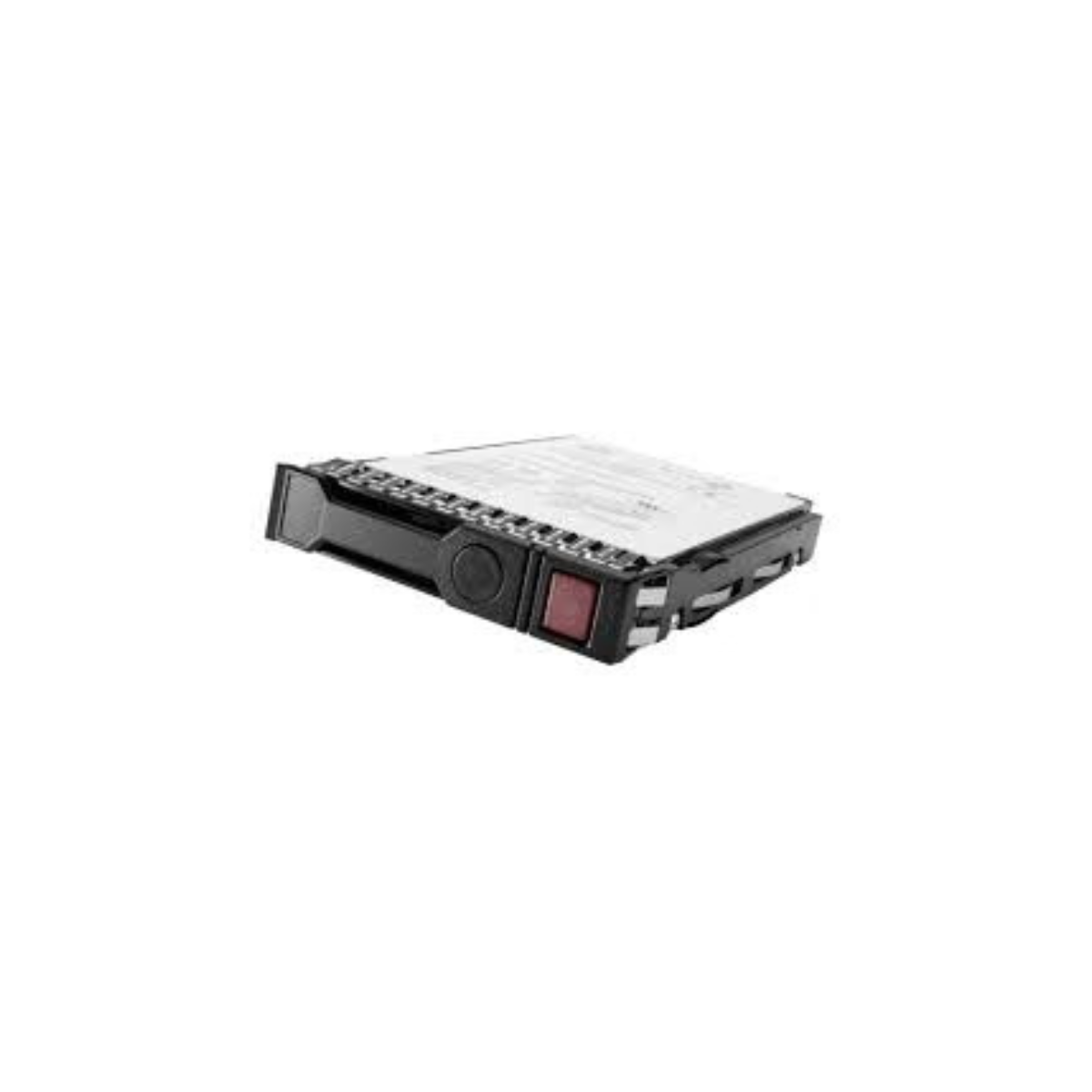

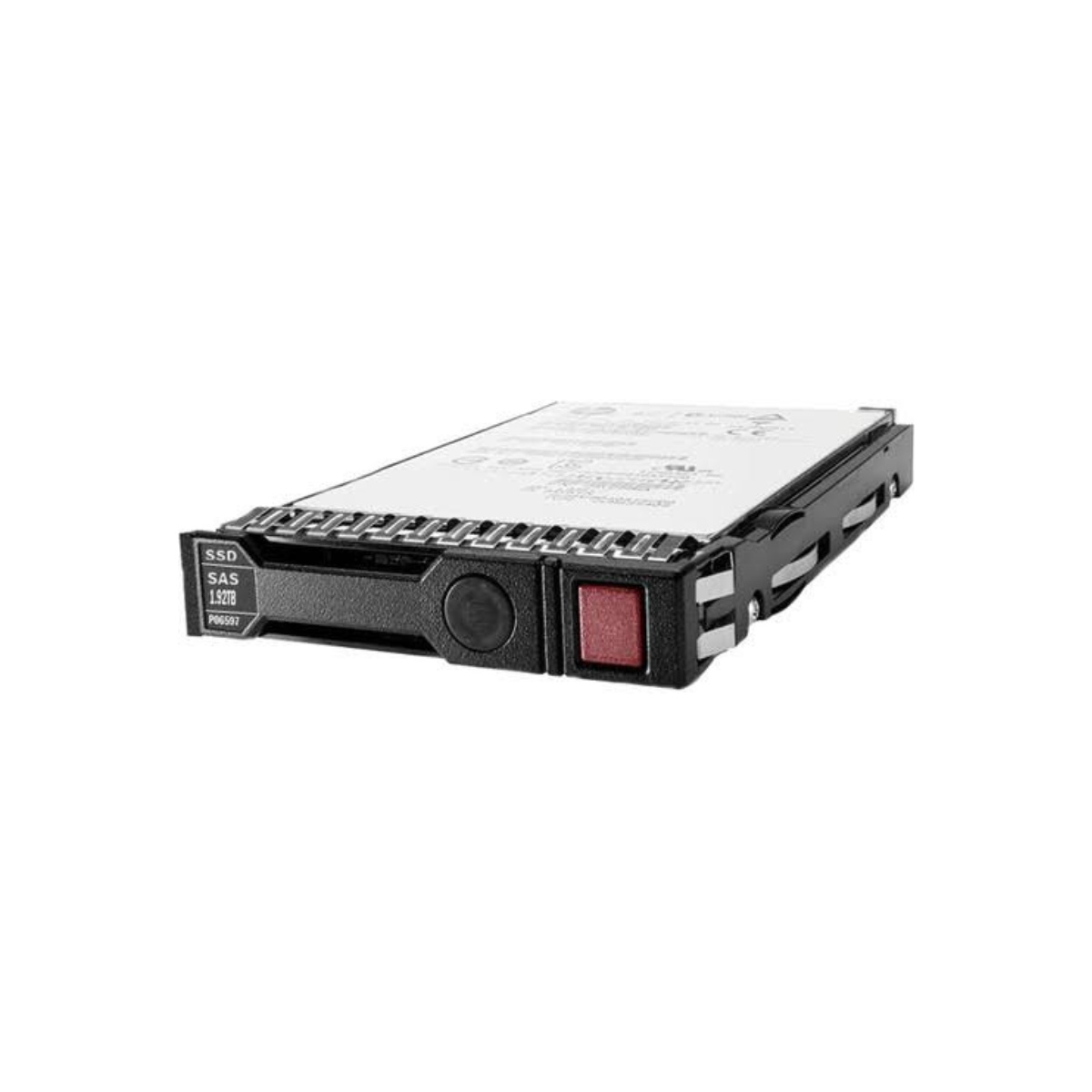

HPE 1.92TB SAS 12G Read Intensive SFF 2.5Inch SC Solid State Drive P04519-B21

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P04519-B21 is a 1.92TB SAS 12Gb/s Read Intensive (RI) Solid State Drive designed for enterprise applications requiring high random read performance, reliable endurance, and fast SAS connectivity. Its 2.5-inch SFF form factor, HPE Smart Carrier, and hot-swap design make it suitable for supported HPE server configurations.

The drive provides a 1.2 GBps external data transfer rate, 109,000 IOPS 4KB random read, and 54,000 IOPS 4KB random write performance. With 1 DWPD endurance, 3,504 TB SSD endurance, and Digitally Signed Firmware, the P04519-B21 is designed for supported Read Intensive enterprise workloads.

Key Features

• 1.92TB storage capacity
• SAS 12Gb/s interface
• Read Intensive (RI) workload classification
• 2.5-inch SFF form factor
• HPE Smart Carrier included
• 109,000 IOPS 4KB random read
• 54,000 IOPS 4KB random write
• 165,000 maximum 4KB random read IOPS
• 54,000 maximum 4KB random write IOPS
• 1.2 GBps external data transfer rate
• 1 DWPD endurance
• 3,504 TB SSD endurance
• MLC NAND flash memory
• Digitally Signed Firmware
• Hot-swap capability

Technical Specifications

• Brand: HPE
• MPN: P04519-B21
• Device Type: Solid State Drive - Hot-Swap
• Capacity: 1.92 TB
• Form Factor: 2.5" SFF
• Interface: SAS 12Gbps
• NAND Flash Memory Type: Multi-level Cell (MLC)
• Features: Digitally Signed Firmware
• Carrier Type: Smart Carrier
• Workload Type: Read Intensive
• Bundled With: HPE Smart Carrier
• Compatible Bay: 2.5" SFF
• Interfaces: 1 x SAS 12 Gb/s
• SSD Endurance: 3,504 TB
• Drive Writes Per Day (DWPD): 1
• Drive Transfer Rate: 1.2 GB/sec (external)
• Internal Data Rate: 1075 MBps read / 1030 MBps write
• 4KB Random Read: 109,000 IOPS
• 4KB Random Write: 54,000 IOPS
• Maximum 4KB Random Read: 165,000 IOPS
• Maximum 4KB Random Write: 54,000 IOPS

Performance Specifications

The HPE P04519-B21 delivers 109,000 IOPS 4KB random read and 54,000 IOPS 4KB random write performance. Its maximum 4KB random read performance reaches 165,000 IOPS, while maximum random write performance is 54,000 IOPS.

The drive provides an external data transfer rate of 1.2 GBps, with internal data rates of 1075 MBps for read and 1030 MBps for write operations.

With 1 DWPD endurance and 3,504 TB SSD endurance, the P04519-B21 is designed for supported enterprise Read Intensive workloads.

Enterprise Features

The P04519-B21 includes an HPE Smart Carrier, providing a carrier solution for compatible HPE server configurations.

The drive features Digitally Signed Firmware, which helps provide assurance that the firmware originates from a trusted source.

The hot-swap design allows installation and replacement in supported HPE server configurations without requiring a complete system shutdown, subject to the specific server and storage controller configuration.

The SSD also supports HPE SmartSSD Wear Gauge compatibility, allowing supported management tools to monitor SSD lifespan.

Physical Specifications

• Form Factor: 2.5" SFF
• Form Factor Size: 2.5-inch SFF
• Carrier Type: HPE Smart Carrier
• Installation: Hot-swap
• Compatible Bay: 2.5" SFF
• Drive Type: Internal Solid State Drive
• NAND Flash Type: MLC
• Workload Type: Read Intensive
• Packaged Quantity: 1

Power Consumption

The HPE P04519-B21 has the following specified power consumption:

• Maximum: 8.98 Watt
• Random Read: 6 Watt
• Random Write: 6 Watt
• Sequential Read: 6.98 Watt
• Sequential Write: 6.98 Watt

Actual power consumption may vary depending on the workload, server configuration, storage controller, and operating conditions.

Compatibility

The HPE P04519-B21 is designed for supported HPE server configurations featuring a compatible 2.5-inch SFF SAS drive bay and SAS 12Gb/s connectivity.

Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SAS SSD configuration.

Ideal Applications

The HPE P04519-B21 1.92TB Read Intensive SSD is suitable for:

• Read-intensive enterprise applications
• Database workloads
• Data warehousing
• Big data analytics
• Cloud computing
• Active archiving
• Enterprise application hosting
• Server storage expansion
• Virtualization environments
• Applications requiring high random read IOPS
• Supported HPE server configurations

Why Choose HPE P04519-B21

The HPE P04519-B21 combines 1.92TB storage capacity, SAS 12Gb/s connectivity, and a compact 2.5-inch SFF form factor for supported HPE enterprise server environments.

With 109,000 IOPS random read, 54,000 IOPS random write, 1 DWPD endurance, and 3,504 TB SSD endurance, the drive is designed for Read Intensive workloads requiring strong random read performance.

The HPE Smart Carrier, Digitally Signed Firmware, hot-swap design, and SmartSSD Wear Gauge compatibility provide additional enterprise-focused storage management capabilities.

Compatibility

• Storage Capacity: 1.92 TB
• Interface: SAS 12Gb/s
• Interface Connection: 1 x SAS 12 Gb/s
• Form Factor: 2.5" SFF
• Compatible Bay: 2.5" SFF
• Carrier: HPE Smart Carrier
• Workload Type: Read Intensive
• NAND Flash: MLC
• Endurance: 1 DWPD
• SSD Endurance: 3,504 TB
• Installation: Hot-swap
• Data Transfer Rate: 1.2 GB/sec
• Firmware: Digitally Signed Firmware
• Device Type: Internal Solid State Drive

FAQs

What is the storage capacity of the HPE P04519-B21?
The HPE P04519-B21 provides 1.92TB of storage capacity and is designed for supported enterprise Read Intensive applications.

What interface does the HPE P04519-B21 use?
The P04519-B21 uses a SAS 12Gb/s interface with 1 x SAS 12 Gb/s connection.

What type of workload is the P04519-B21 designed for?
The P04519-B21 is classified as a Read Intensive (RI) SSD, making it suitable for enterprise workloads with a high proportion of read operations.

What are the random read and write IOPS of this SSD?
The drive provides 109,000 IOPS 4KB random read and 54,000 IOPS 4KB random write. Its maximum 4KB random read performance is 165,000 IOPS.

What is the endurance rating of the HPE P04519-B21?
The P04519-B21 has an endurance rating of 1 DWPD and a specified SSD endurance of 3,504 TB.

Does the HPE P04519-B21 include a Smart Carrier?
Yes. The P04519-B21 is bundled with an HPE Smart Carrier and is designed for compatible 2.5-inch SFF server bays.
