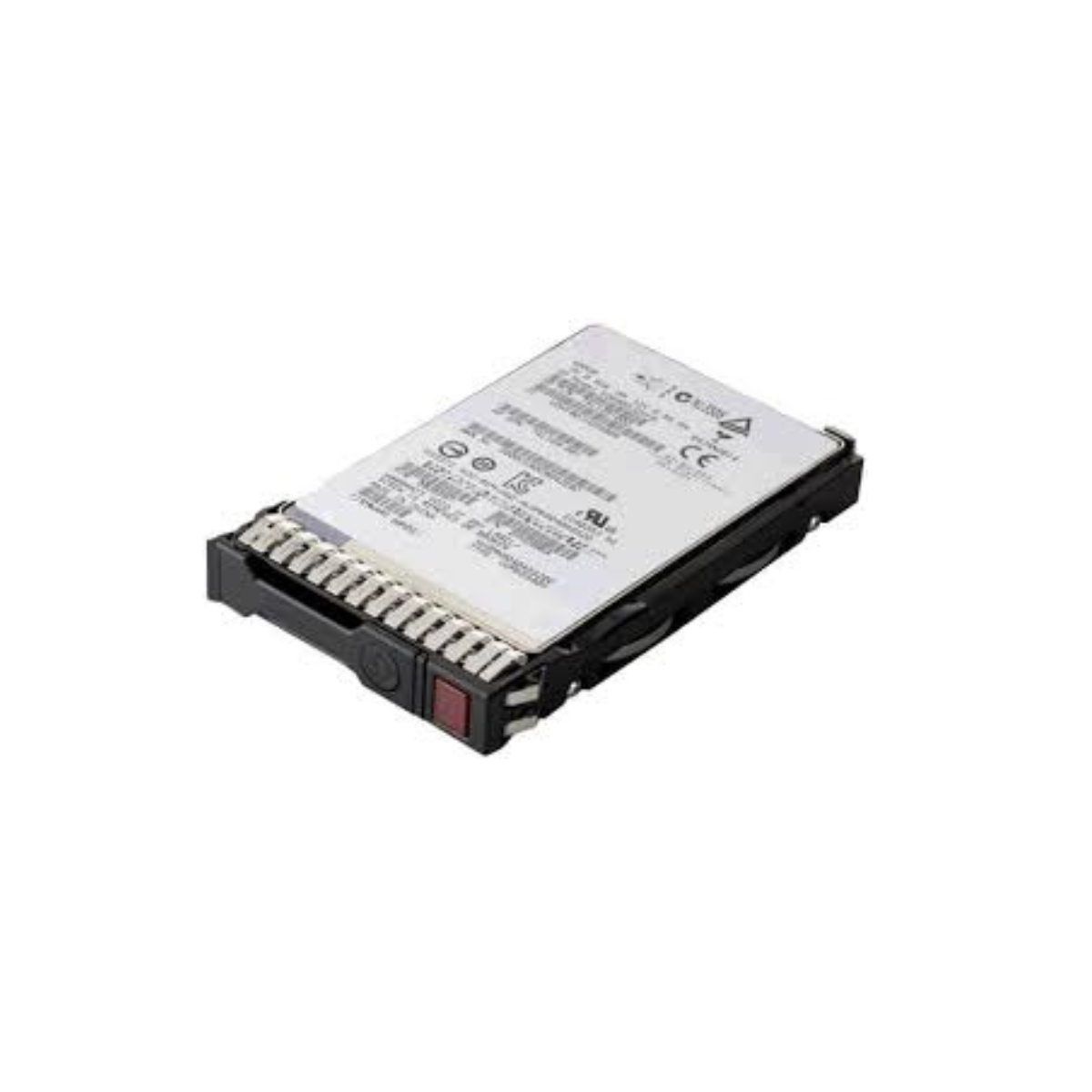

HPE 6.4TB SAS 12G Mixed Use SFF 2.5in SC SSD Solid State Drive P04539-B21

BRAND NEW WITH THE FULL HPE WARRANTY!!!

Overview

The HPE P04539-B21 is a 6.4TB SAS 12Gb/s Mixed Use (MU) Solid State Drive designed for enterprise applications requiring a balance of high random read and write performance. Its 2.5-inch SFF form factor, HPE Smart Carrier, and hot-plug capability make it suitable for supported HPE server configurations.

The drive provides a 12 Gb/sec external transfer rate, with 1,075 MBps internal read and 1,030 MBps internal write performance. It delivers 113,000 IOPS 4KiB random read and 105,000 IOPS 4KiB random write, with maximum random read performance reaching 165,000 IOPS.

Key Features

• 6.4TB storage capacity
• SAS 12Gb/s interface
• Mixed Use (MU) workload classification
• 2.5-inch SFF form factor
• HPE Smart Carrier included
• 113,000 IOPS 4KiB random read
• 105,000 IOPS 4KiB random write
• Up to 165,000 IOPS maximum random read
• 1,075 MBps internal read rate
• 1,030 MBps internal write rate
• 3 DWPD endurance
• Digitally Signed Firmware
• Hot-plug capability
• MLC NAND flash memory

Technical Specifications

• Brand: HPE
• Manufacturer: Hewlett Packard Enterprise
• MPN: P04539-B21
• Device Type: Solid State Drive - Hot-Swap
• Capacity: 6.4 TB
• Interface Type: SAS 12Gbps
• Storage Interface: SAS 12Gb/s
• Form Factor: 2.5-inch SFF
• NAND Flash Memory Type: Multi-Level Cell (MLC)
• Carrier Type: Smart Carrier (SC)
• Plug Type: Hot Pluggable
• Features: Digitally Signed Firmware
• Bundled With: HPE Smart Carrier
• Lifetime Writes: 35,040
• Endurance DWPD: 3
• Drive Transfer Rate (External): 12 Gb/sec
• Internal Data Rate (Read): 1,075 MBps
• Internal Data Rate (Write): 1,030 MBps
• Random Read IOPS (4KiB, Q=16): 113,000 IOPS
• Max Random Read IOPS (4KiB): 165,000 IOPS @ Q32
• Random Write IOPS (4KiB, Q=16): 105,000 IOPS
• Max Random Write IOPS (4KiB): 108,000 IOPS @ Q16
• Interfaces: 1 x SAS 12 Gb/s
• Compatible Bay: 2.5" SFF

Performance Specifications

The HPE P04539-B21 provides a 12 Gb/sec external transfer rate with an internal read rate of 1,075 MBps and an internal write rate of 1,030 MBps.

For random workloads, the drive delivers 113,000 IOPS for 4KiB random read and 105,000 IOPS for 4KiB random write at Q=16. Maximum 4KiB random read performance reaches 165,000 IOPS, while maximum random write performance reaches 108,000 IOPS.

With 3 DWPD endurance, the SSD is designed for enterprise Mixed Use workloads involving a balanced combination of read and write operations.

Enterprise Features

The HPE Smart Carrier provides a carrier solution for compatible HPE server configurations and helps provide drive-status information.

The Digitally Signed Firmware feature helps provide assurance that the drive firmware comes from a trusted source. The drive also supports HPE SmartSSD Wear Gauge compatibility, allowing supported management tools to monitor SSD lifespan.

Physical Specifications

• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier Type: HPE Smart Carrier
• Installation: Hot Pluggable
• Height: 5.00 inches (12.70 cm)
• Width: 9.00 inches (22.86 cm)
• Depth: 7.00 inches (17.78 cm)
• Weight: 1.10 lbs (0.50 kg)
• Drive Type: Internal Solid State Drive
• NAND Flash Type: Multi-Level Cell (MLC)

Compatibility

The HPE P04539-B21 is designed for supported HPE ProLiant server and HPE Synergy configurations featuring compatible 2.5-inch SFF SAS storage bays.

Before installation, verify the specific HPE server model, generation, drive cage, storage controller, firmware, and supported SAS SSD configuration.

Ideal Applications

The HPE P04539-B21 6.4TB Mixed Use SSD is suitable for:

• Mixed-use enterprise applications
• Database workloads
• Virtualization environments
• Cloud computing
• Transactional applications
• Enterprise application hosting
• Data-intensive workloads
• Server storage expansion
• Workloads requiring balanced read/write performance
• Supported HPE ProLiant and HPE Synergy platforms

Why Choose HPE P04539-B21

The HPE P04539-B21 combines 6.4TB storage capacity, 12Gb/s SAS connectivity, and a 2.5-inch SFF form factor with strong random read and write performance.

With 3 DWPD endurance, 113,000 IOPS random read, 105,000 IOPS random write, an HPE Smart Carrier, and Digitally Signed Firmware, the drive is designed for enterprise Mixed Use workloads requiring dependable storage performance.

Compatibility

• Storage Capacity: 6.4 TB
• Interface: SAS 12Gb/s
• Interface Connection: 1 x SAS 12 Gb/s
• Form Factor: 2.5-inch SFF
• Compatible Bay: 2.5-inch SFF
• Carrier: HPE Smart Carrier
• Workload Type: Mixed Use
• Endurance: 3 DWPD
• Installation: Hot Pluggable
• NAND Flash: Multi-Level Cell (MLC)
• Firmware: Digitally Signed Firmware
• Supported Platforms: HPE ProLiant and HPE Synergy configurations

FAQs

What is the storage capacity of the HPE P04539-B21?
The HPE P04539-B21 provides 6.4TB of storage capacity and is designed for enterprise Mixed Use workloads.

What interface does the HPE P04539-B21 use?
The P04539-B21 uses a SAS 12Gb/s interface with a 12 Gb/sec external transfer rate.

What type of workload is the P04539-B21 designed for?
The P04539-B21 is a Mixed Use (MU) SSD, designed for workloads requiring a balance of random read and write operations.

What are the random read and write IOPS of the P04539-B21?
The SSD provides 113,000 IOPS 4KiB random read and 105,000 IOPS 4KiB random write at Q=16. Maximum random read performance reaches 165,000 IOPS.

What is the endurance rating of the HPE P04539-B21?
The P04539-B21 has an endurance rating of 3 DWPD (Drive Writes Per Day) and a specified lifetime writes figure of 35,040.

Does the HPE P04539-B21 include a Smart Carrier?
Yes. The P04539-B21 is bundled with an HPE Smart Carrier and is designed for compatible 2.5-inch SFF server bays.
